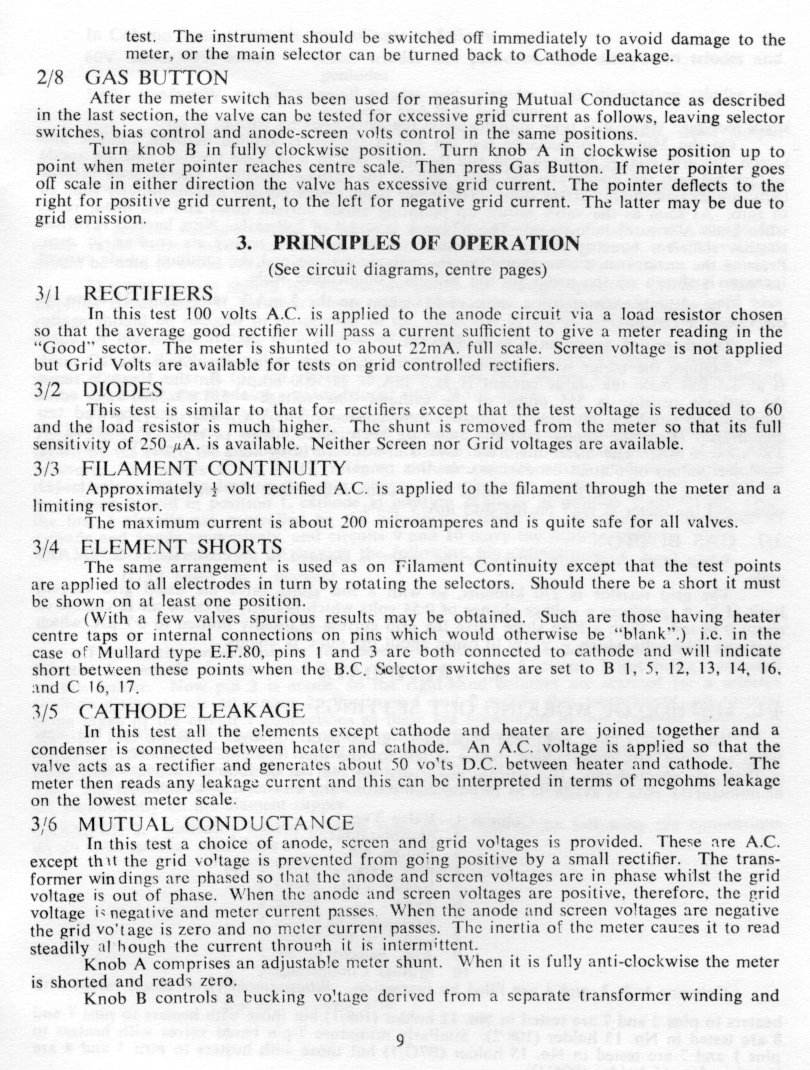

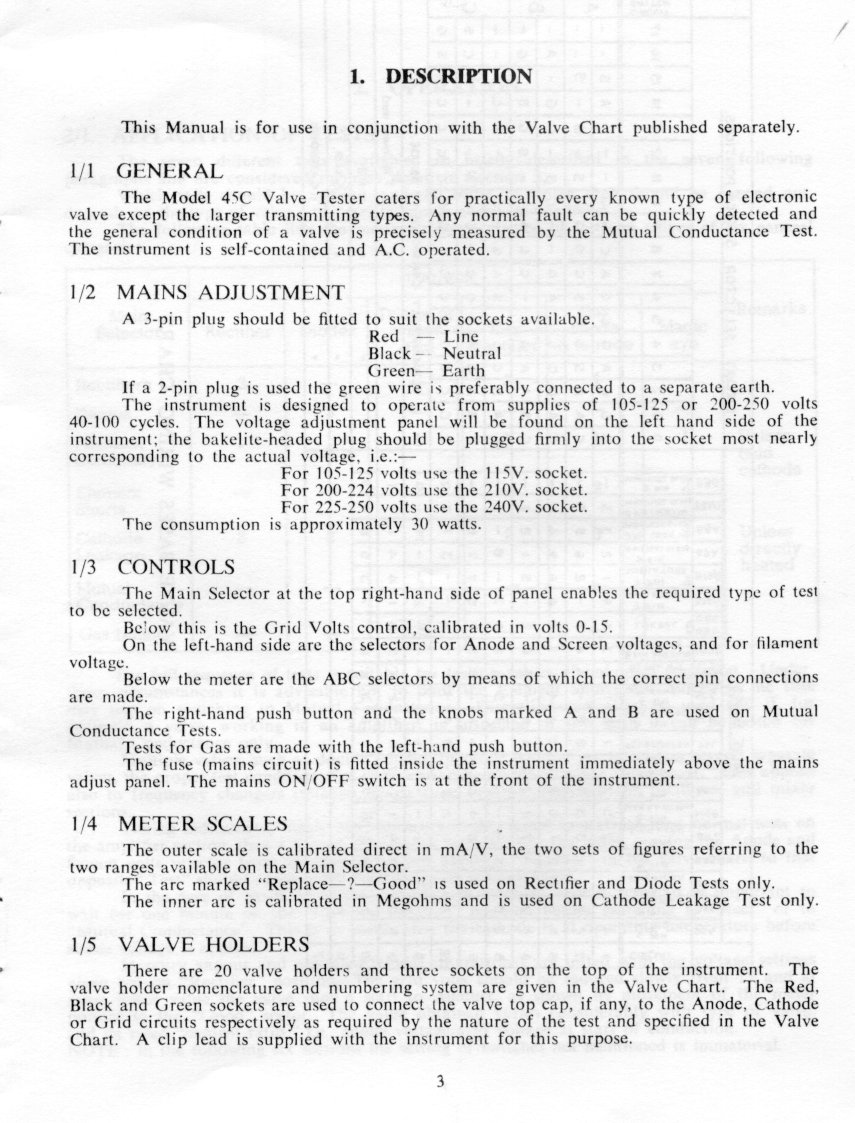

Page 3
Page 4

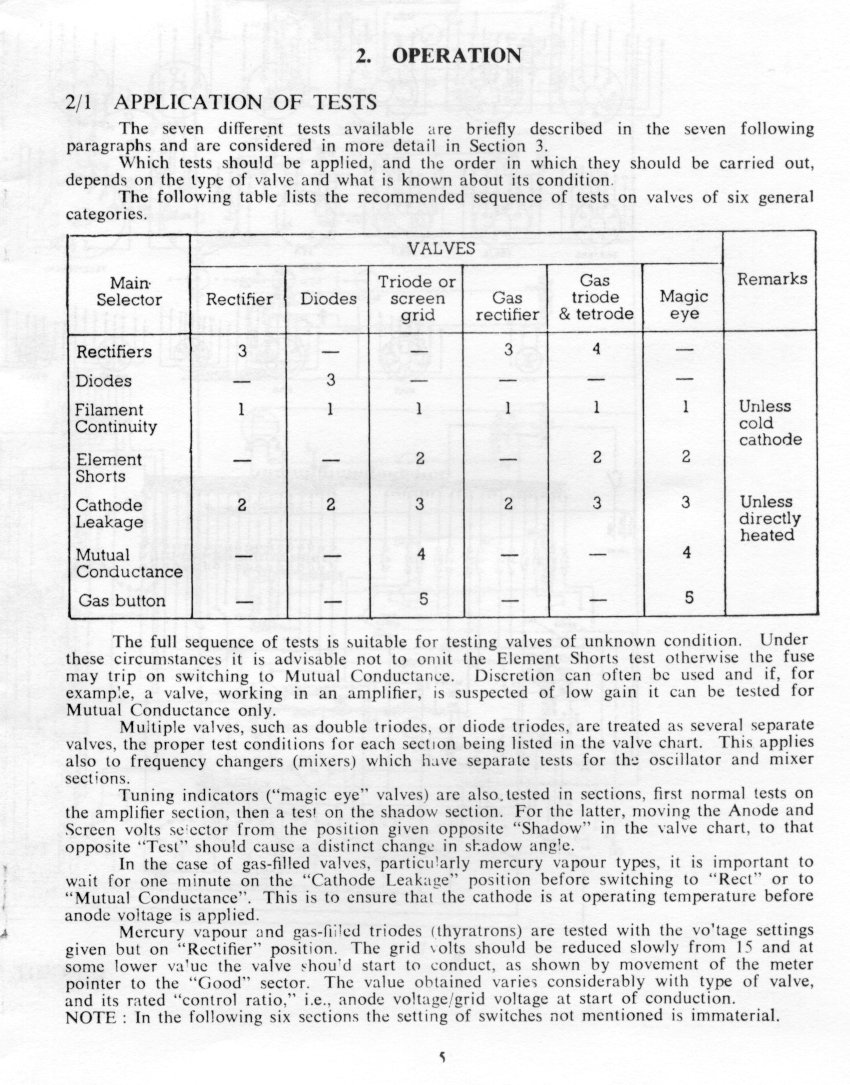

Page 5

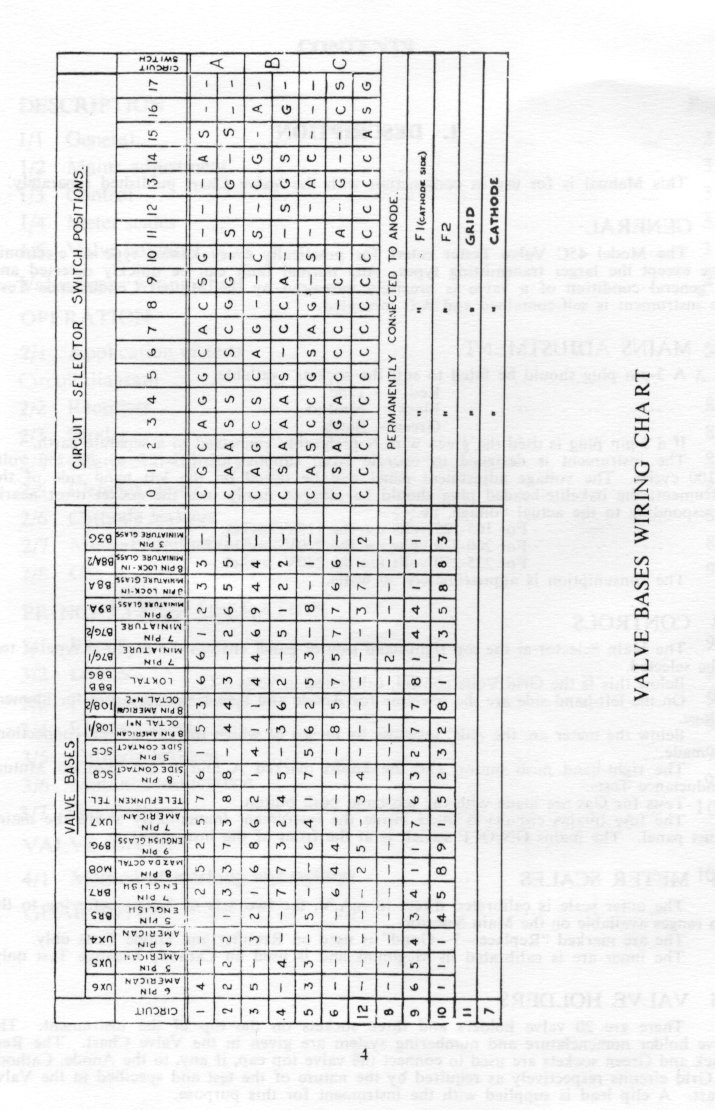

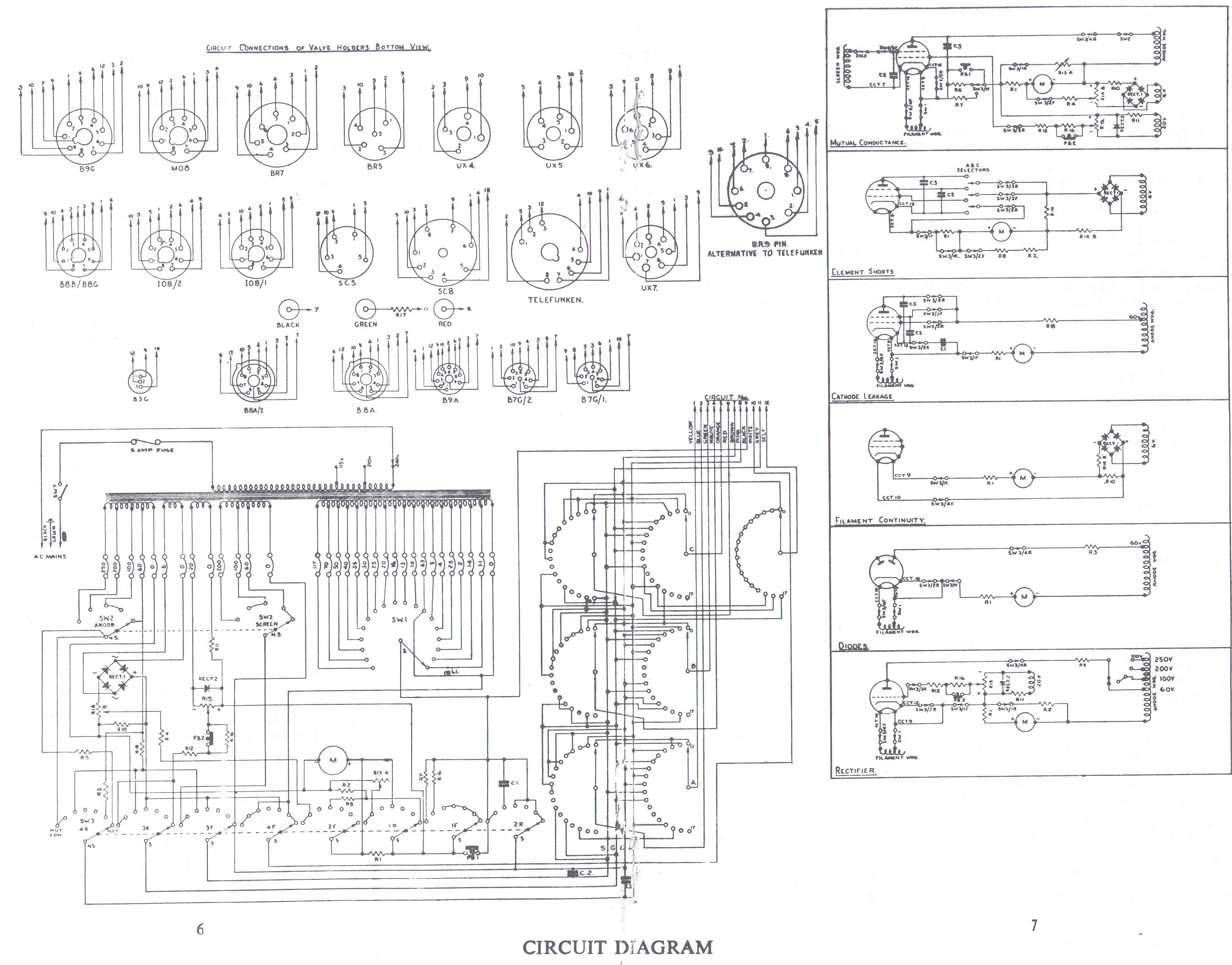

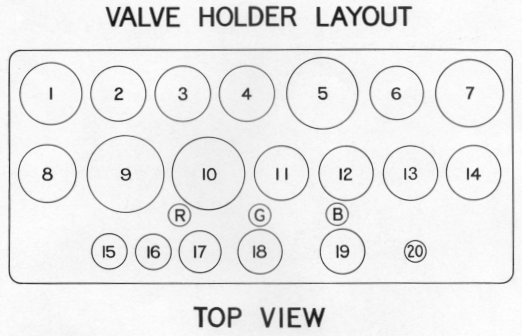

Circuit Diagram, 734KB

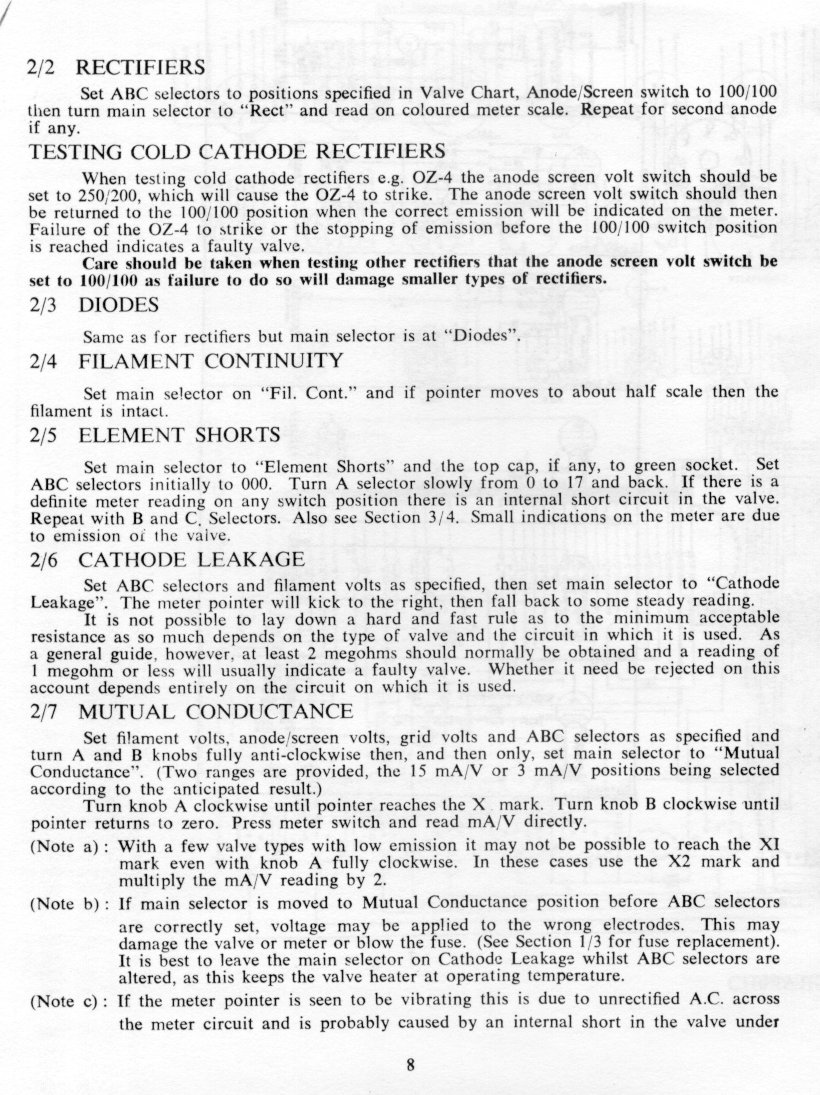

Page 8
Page 9
Page 10

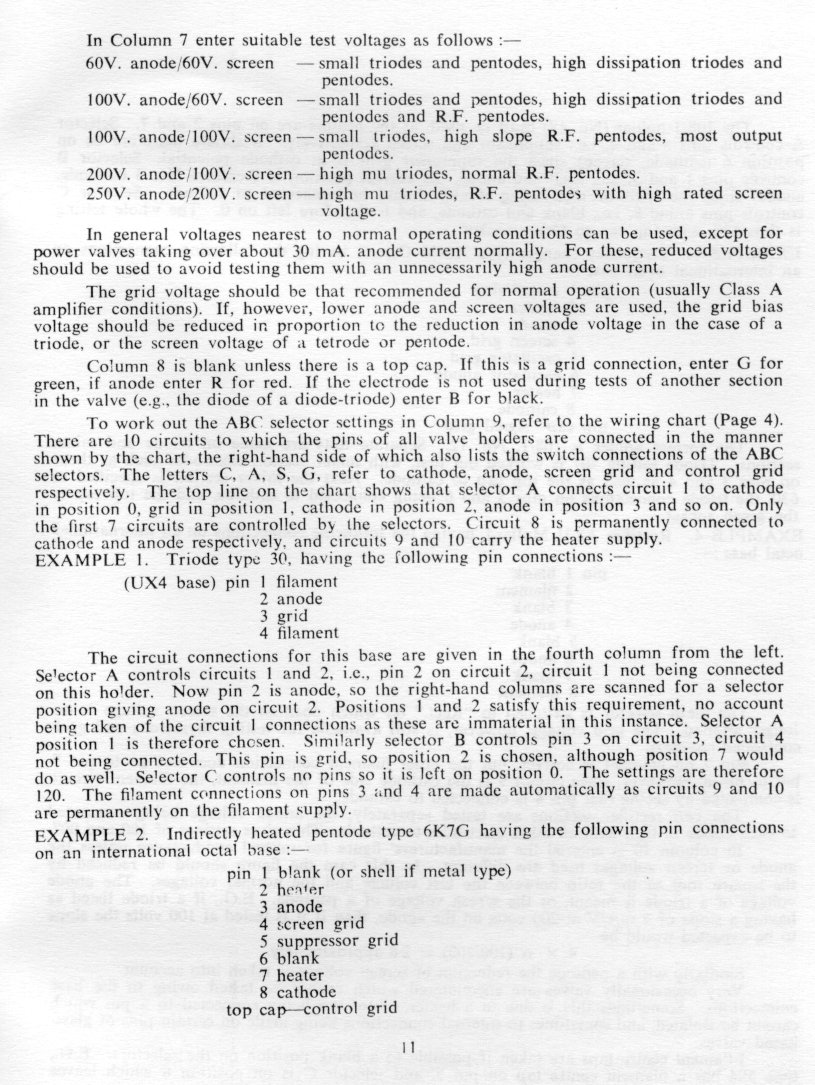

Page 11

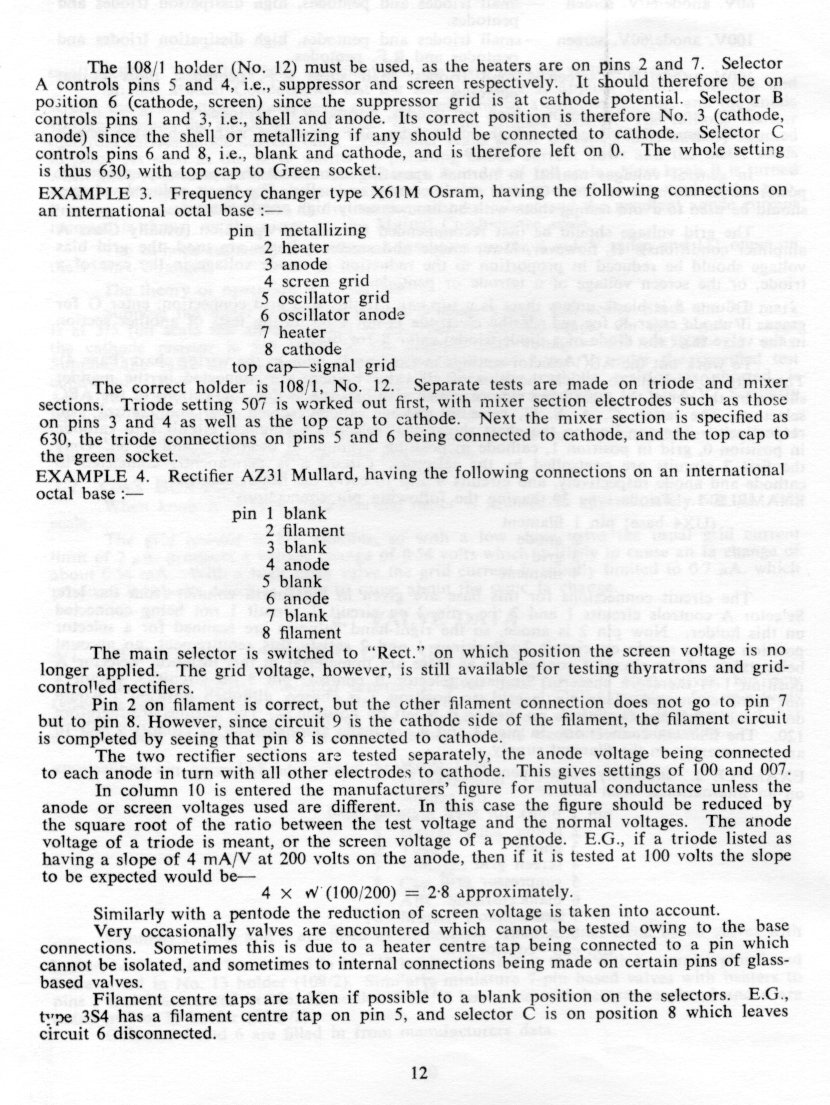

Page 12

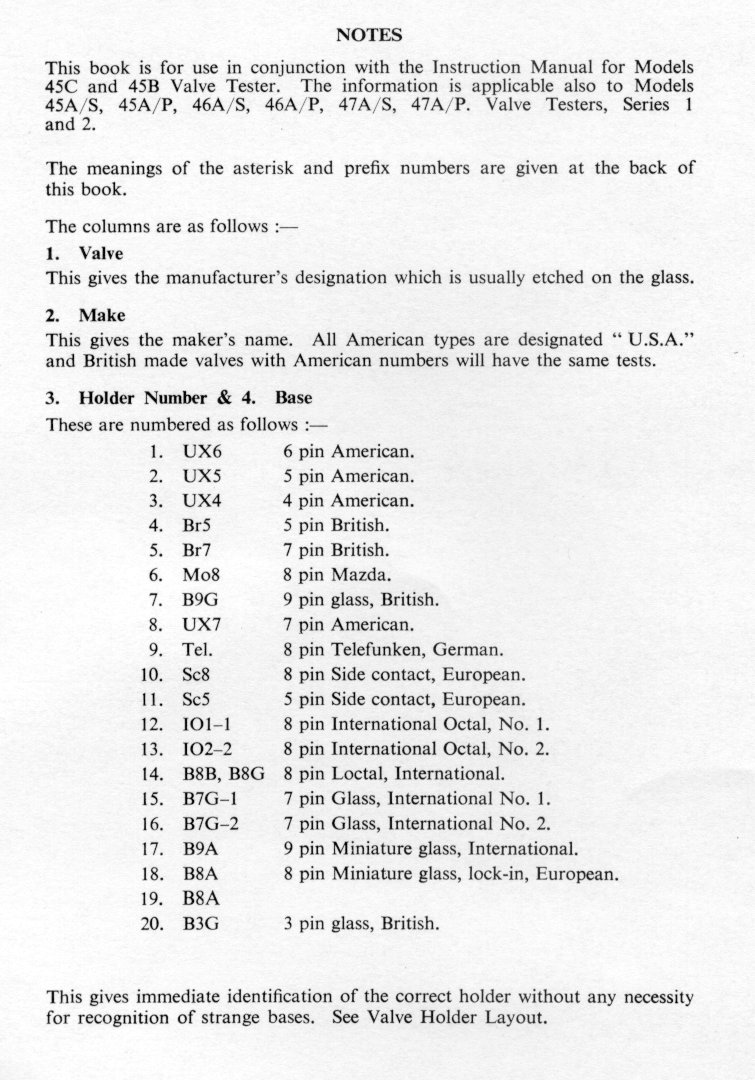

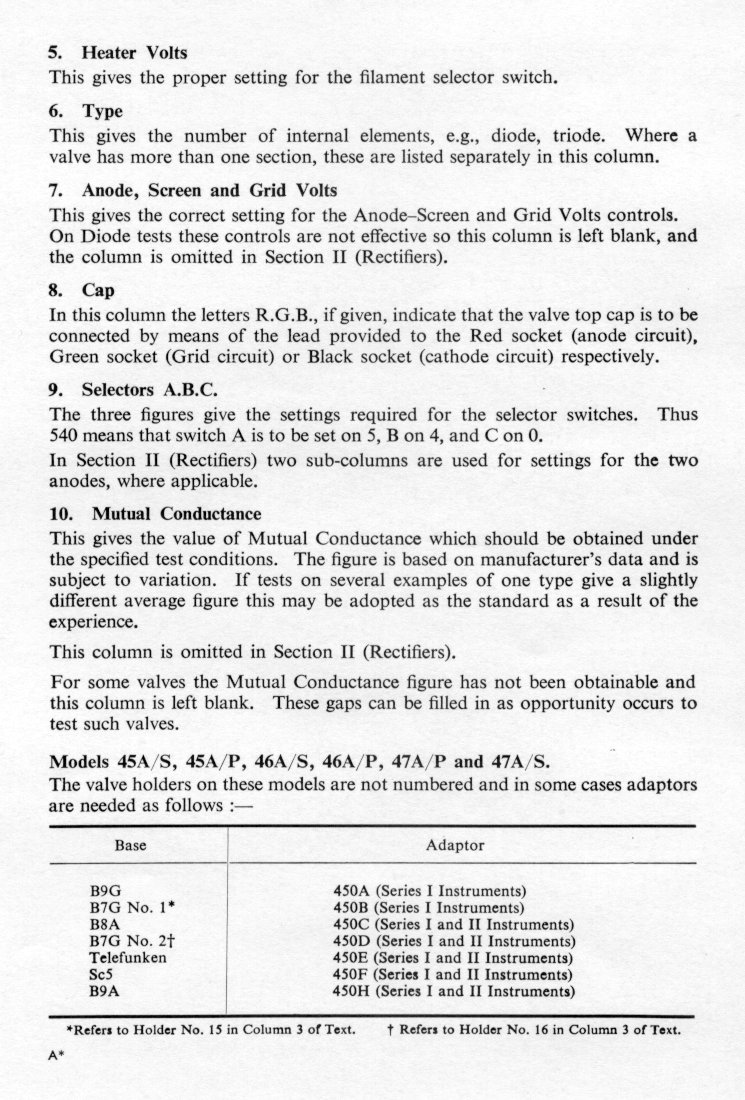

VALVE CHART
for use with
TAYLOR VALVE TESTER

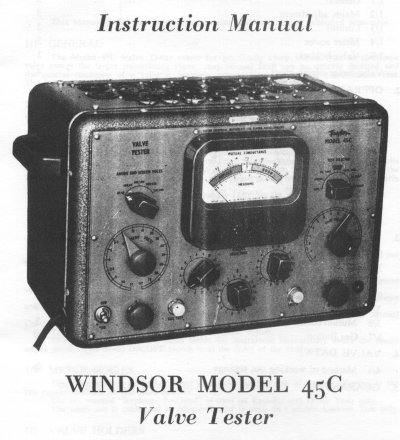

MODEL 45C
Settings also applicable to 45A, 45B, 46A & 47A
Whole valve chart consists of about 80 pages.
At this time 4 pages are scanned and available here:

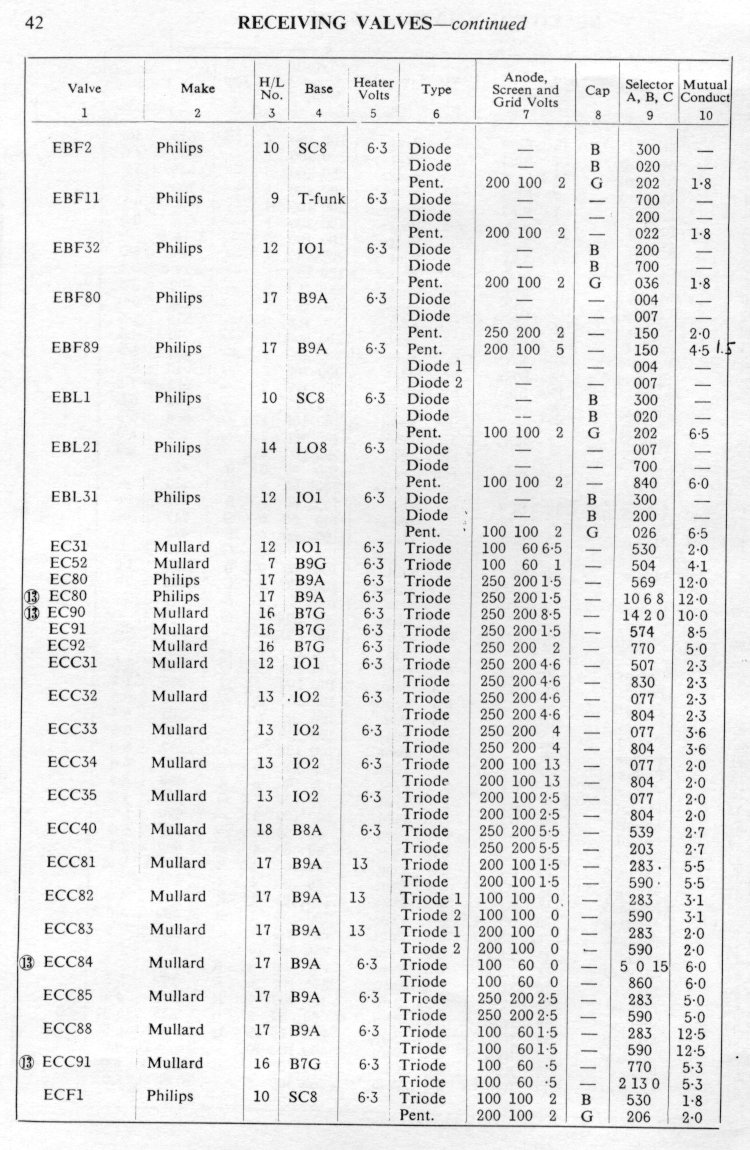

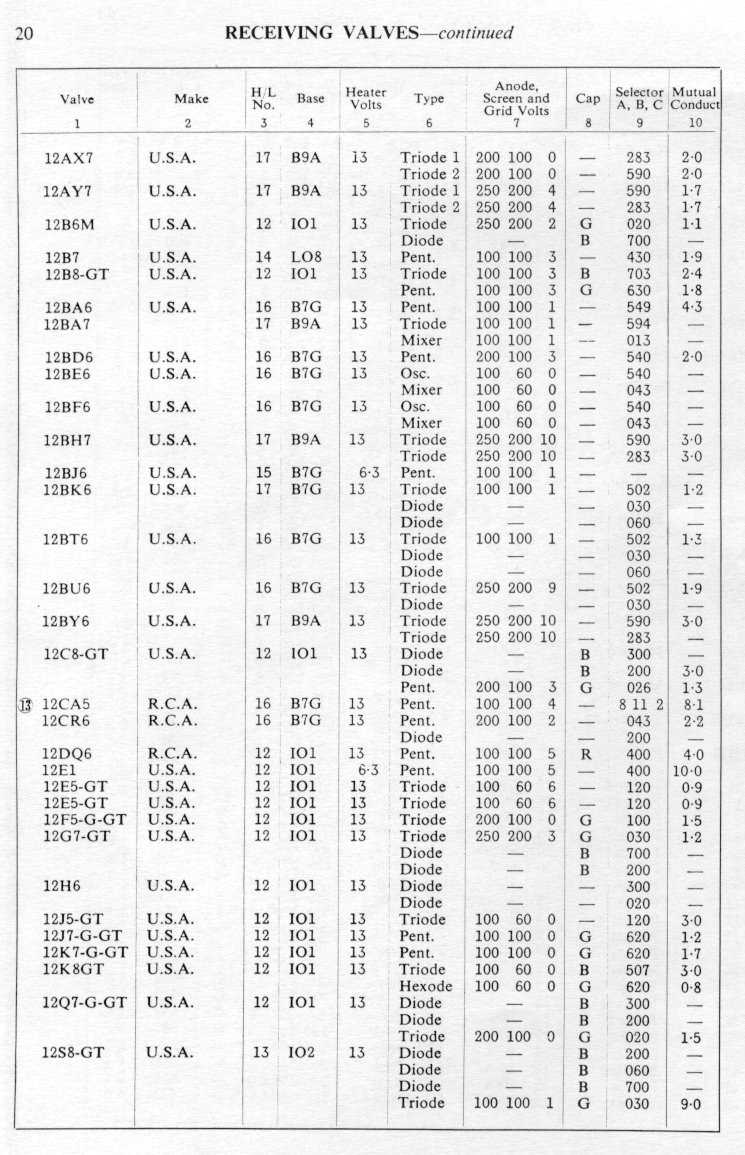

p20 12AX7...12S8-GT p42 EBF-2...ECF1

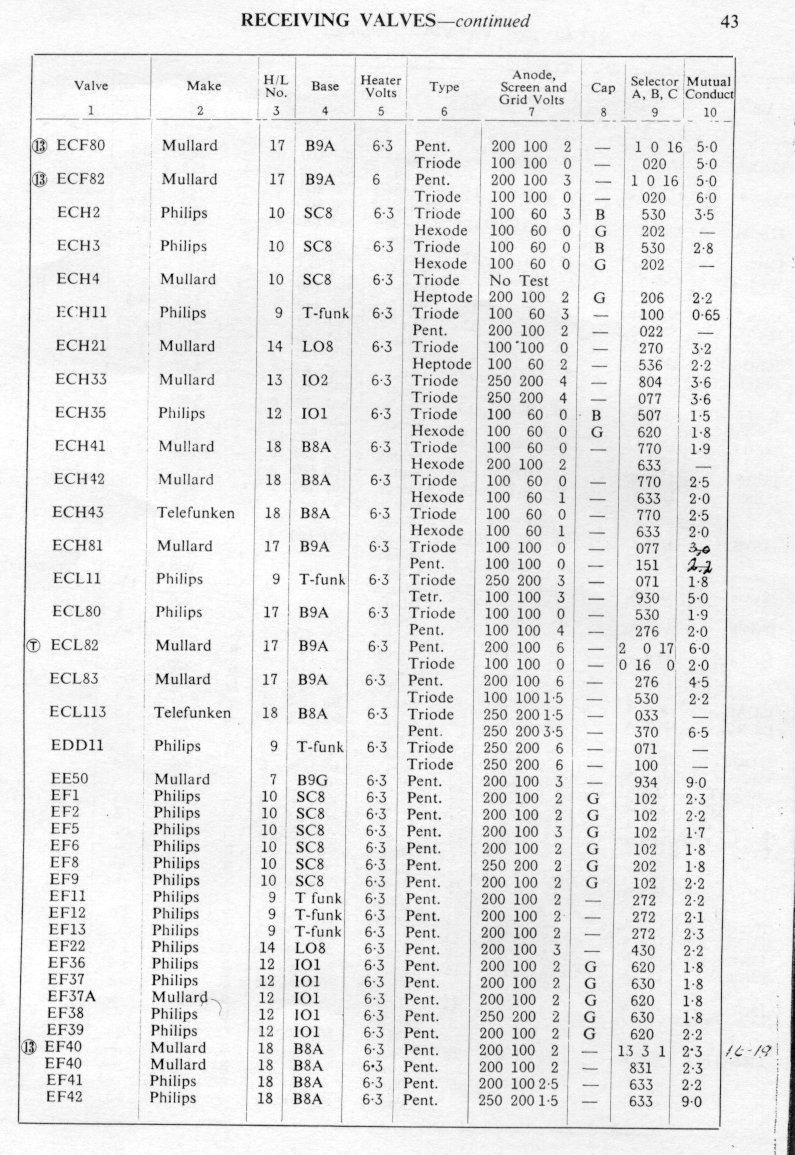

p43 ECF80...EF42 p44

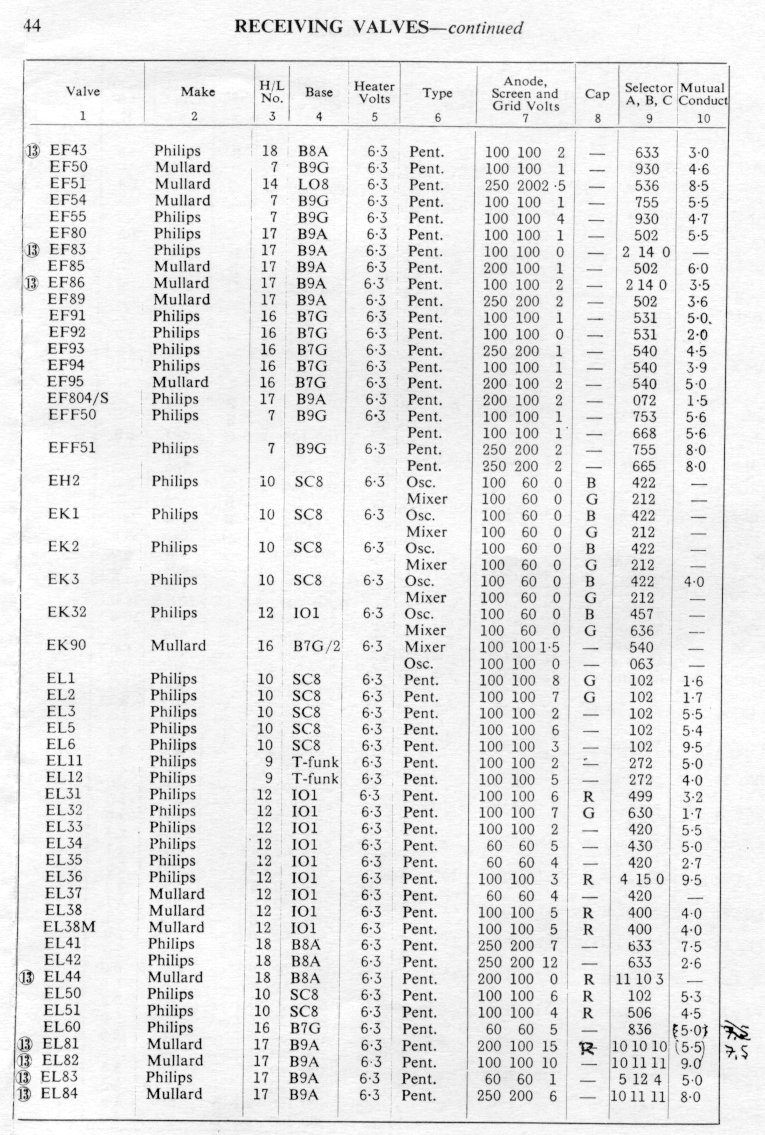

EF43...EL84
These are U.S.A. and European types.
NEW (2001/03/29): Whole Valve
Data is scanned and zipped here (about 7.5 Mb).
